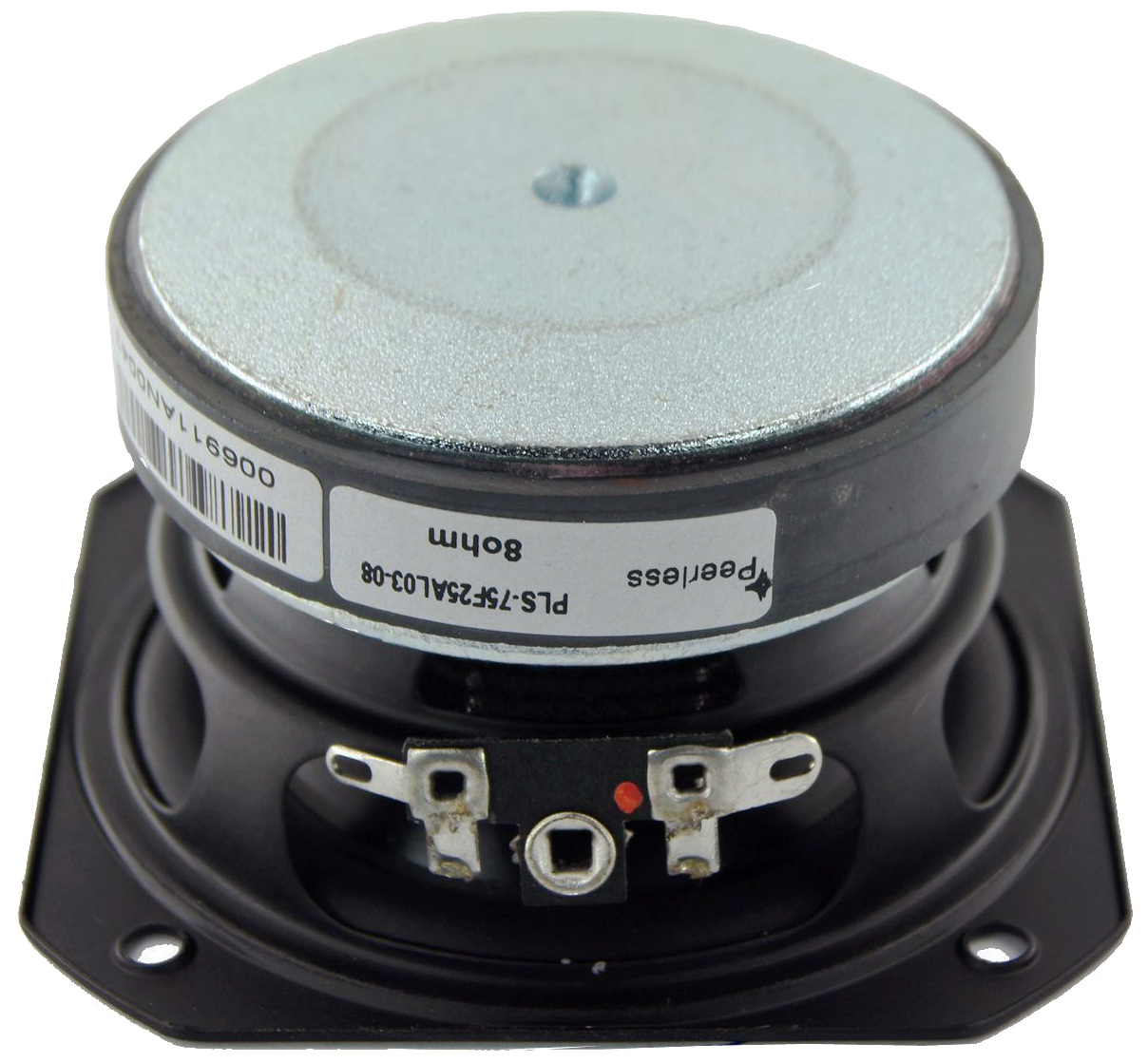

Peerless PLS-75F25AL03-08
8Ω
Full-range
| Nominal diameter | 3″ / 76 mm |
| Resonance | 110 Hz |
| Q factor | 0.75 |
| Sensitivity | 83.6 dB |
| Linear excursion | ± 3.4 mm |
| Program power | 50 W |
Discontinued
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.6dB
- Frequency response 100 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 110Hz
- Mechanical quality factor QMS 6.13
- Electrical quality factor QES 0.85
- Total quality factor QTS 0.75
Large signal parameters
- Maximum linear excursion (one way) xmax 3.4mm
- Air volume displaced at xmax VD 9.6cm³
- Power handling P 25W
- Program power Pmax 50W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.3Ω
- Inductance (1kHz) LE 0.094mH
- VC Diameter 25.7mm
Magnet
- Force factor Bl 3.61N/A
- Motor constant Bl/√RE 1.44N/√W
- Air gap height HAG 4mm
- Material Ferrite
Diaphragm
- Effective diameter 60mm
- Effective area SD 28.3cm²
- Moving mass (including air load) MMS 2.49g
- Moving mass MMD 2.4g
- Material Aluminum
Suspensions
- Stiffness KMS 1.25N/mm
- Compliance CMS 800µm/N
- Equivalent volume to the compliance VAS 0.907L
- Mechanical resistance RMS 0.28N·s/m
- Surround material Rubber

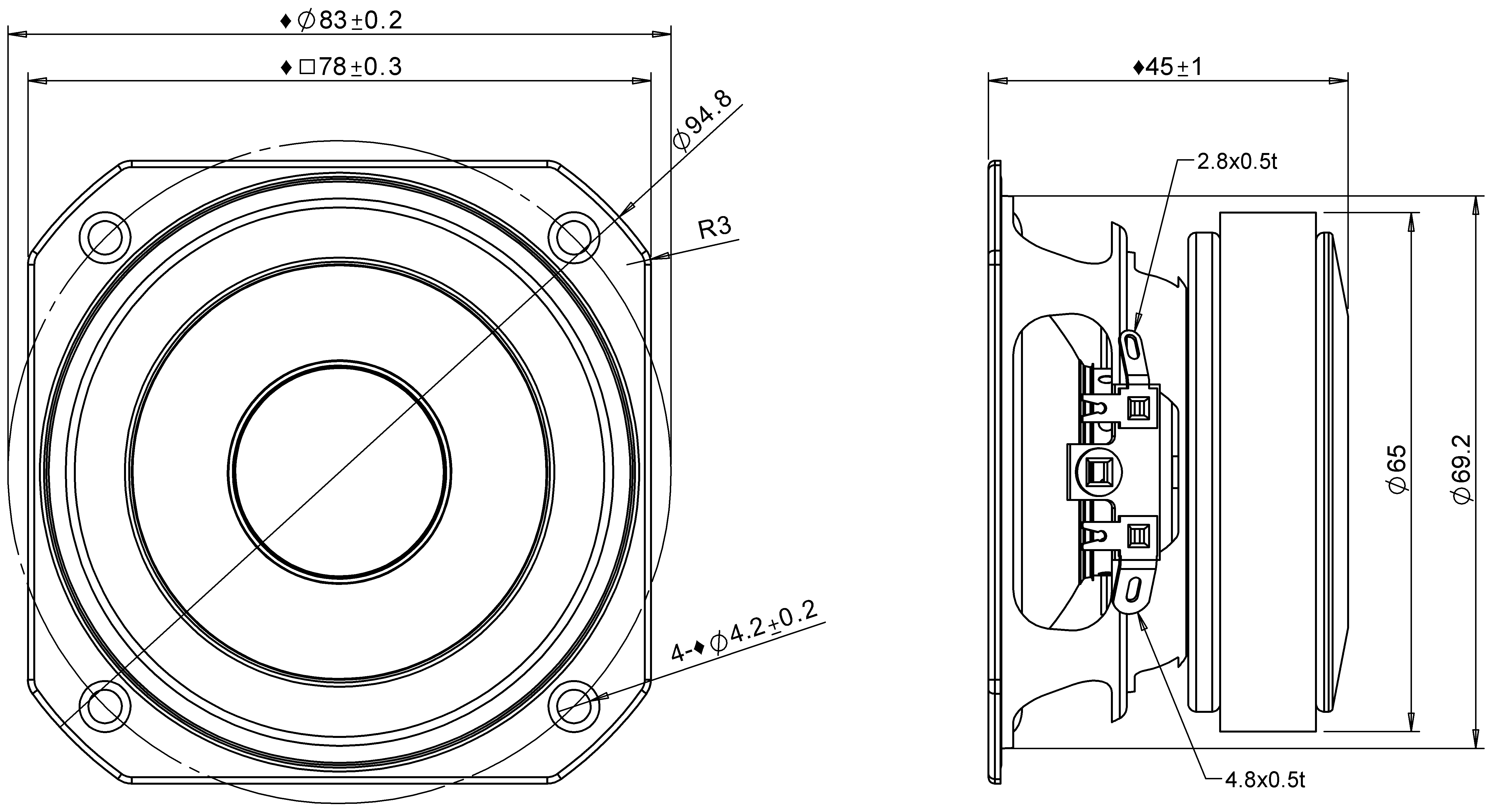

Dimensions
- Nominal diameter 3″
- 76mm
- Volume occupied by the driver (estimated) 0.14L
- Net weight 0.38kg
.png)
.png)
